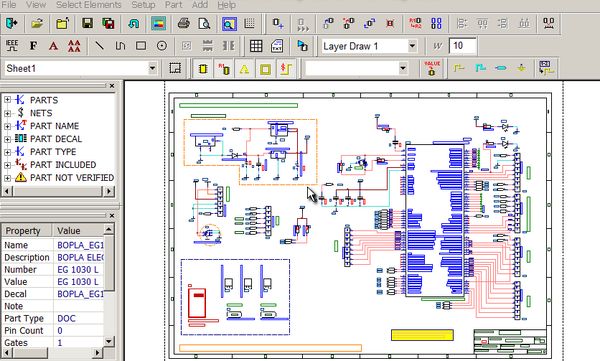

ZenitPCB is an excellent PCB design software designed to help users quickly create professional printed circuit boards (PCBs). As a flexible and easy-to-use CAD program, ZenitPCB allows users to realize their electronic projects in a short period of time and is especially suitable for hobbyists and students.

ZenitPCB Introduction

- Software name: ZenitPCB
- Software official website: https://www.zenitpcb.com/
- Cost: Totally free (for personal or semi-professional use)
- Affiliated Company: ZenitPCB
- Development history: ZenitPCB is committed to providing high-quality PCB design tools for electronics enthusiasts and students, and gradually improving its features and user experience.
- Software Status: Currently, ZenitPCB supports designs with up to 800 pins and is suitable for users ranging from amateurs to semi-professionals.

ZenitPCB Core Features

- Flexible Design Options: Users can create projects from schematic capture or start directly from the layout editor. Supports importing network lists (netlist) in multiple formats, such as Orcad, Pads, Eagle, etc., which allows users to quickly realize their designs.
- Powerful Component Library: ZenitPCB provides more than 800 component packages, users can easily select and import the required components, supports manual connection and automatic wiring, which greatly improves the design efficiency.
- Multiple Output Formats: Supporting Gerber 274X output, NCDrill and Slot output, users can easily generate production-compliant files.
- Real-time Design Rule Check (DRC): Built-in on-line DRC function ensures design compliance with electrical and physical rules and reduces design errors.
- User-friendly interface: ZenitPCB has a simple and intuitive interface that allows users to get started quickly and is suitable for designers of all levels.

ZenitPCB Software Tutorials and Resources

- ZenitPCB Download Page: http://www.zenitpcb.com/DownLoad.html
   Provides free download and installation instructions for the software.

ZenitPCB Software Disadvantages

Although ZenitPCB is a powerful PCB design tool, there are some shortcomings:
1. Functionality Limitations: For complex projects, the 800-pin limit may affect the design needs of some users, especially professional users.
2. Lack of automatic annotation function: after deleting the component, the software does not have the function of automatically updating the annotation, users need to manually rename it, which increases the complexity of the design.
3. Inadequate zoom function: In Zenit Capture, there is a lack of shortcut keys to zoom in and out, which may affect users' design efficiency.
4. Inadequate Interface Functionality: The lack of some important functions may affect the user experience, but the development team is continuously improving.

ZenitPCB Frequently Asked Questions

- What operating systems does ZenitPCB support?
A: ZenitPCB currently supports Windows operating systems.
- **How to download ZenitPCB?
A: Users can visit https://www.zenitpcb.com/ for free download.
- Is ZenitPCB suitable for beginners?
A: Yes, ZenitPCB has a user-friendly interface and is suitable for beginners and students.

ZenitPCB User Reviews

1. “ZenitPCB is the easiest PCB design tool I've ever used, fully functional and easy to use.”
2. “As a student, I really like this free design software, it allows me to realize my projects easily.”
3. “Although some of the features are not perfect, the overall experience is still very good and recommended for hobbyists.”

ZenitPCB For People

ZenitPCB is especially suitable for the following people:
- Electronics hobbyists: whether they are beginners or experienced designers, ZenitPCB can fulfill their design needs.
- Students and Academic Staff: Students in many colleges and vocational training institutions can utilize ZenitPCB for their projects, helping them to understand the fundamentals of PCB design.
- Small Businesses and Entrepreneurs: For entrepreneurs who need rapid prototyping, ZenitPCB provides an affordable solution to help them realize their ideas without the high cost of software.

ZenitPCB Software Review

ZenitPCB is a powerful free PCB design software for personal and semi-professional users. Its flexibility and ease of use make it ideal for the electronic design field. Considering all features and user experience, I give ZenitPCB a score of 4.5 out of 5.
