How to Select the Ideal PCBA Manufacturing Partner for Your Smart Home IoT Gateway

2026.04.08

In the fast-paced world of Smart Home IoT, your gateway is the brain of the ecosystem. A single failure in your PCBA can lead to devastating product recalls and damaged brand reputation. Choosing the right manufacturing partner is not just a sourcing task—it is a strategic decision that determines your product's reliability, scalability, and long-term market viability.

Understanding the Complexity of IoT Hardware

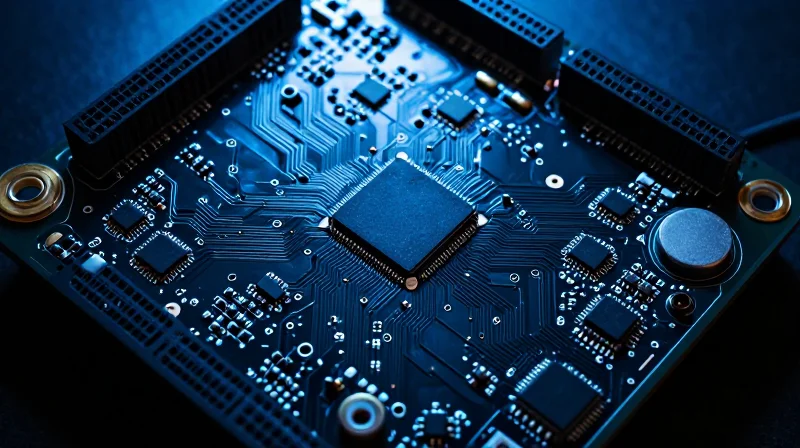

A close-up view of a high-tech smart home IoT gateway circuit board showing intricate electronic components and connectivity pathways.

The Engineering Demands of IoT Gateways

IoT gateways function as the vital bridge between local sensors and the cloud, necessitating a hardware architecture that is inherently resilient. Unlike standard consumer electronics, these devices are designed for 'always-on' performance, requiring high-density PCB layouts that balance intricate antenna integration with efficient power distribution to prevent signal degradation.

Critical Performance Indicators

ConstraintManufacturing ImpactGateway Requirement
Signal IntegrityTrace Impedance ControlStable RF/Wireless Connectivity
Thermal ManagementLayer Stack-up DesignComponent Longevity
Power EfficiencyPrecision Component SourcingLow Idle Current Draw

Common Challenges in IoT PCBA

  • How does miniaturization affect assembly?
    As gateways become smaller, the risk of solder bridging and component misalignment increases, necessitating high-precision Automated Optical Inspection (AOI) during production.
  • Why is thermal stability critical?
    Smart home environments vary significantly. Robust thermal management prevents internal component degradation that would otherwise cause intermittent connectivity or system failures over time.
  • What role does component quality play?
    Using substandard passives or non-certified modules can introduce noise into the RF chain, severely limiting the gateway's range and data throughput capabilities.

The Importance of Quality Certifications

A conceptual image representing professional industrial quality assurance and testing equipment in a clean manufacturing environment.

The Pillars of Quality Assurance in IoT Manufacturing

When selecting a partner for your smart home IoT gateway, certifications serve as external validation of a manufacturer's internal process controls. For IoT devices that operate 24/7, these standards are not merely bureaucratic hurdles but critical safeguards against component failure and connectivity loss.

CertificationPrimary FocusValue for IoT Gateways
ISO 9001Quality Management SystemsEnsures consistent manufacturing processes and traceability.
IPC-A-610Acceptability of ElectronicsDefines visual standards for solder joints and assembly integrity.
IATF 16949Automotive Quality StandardDemonstrates extreme process discipline and defect prevention.

Key Certifications Explained

  • ISO 9001
    This is the baseline requirement. It signifies that the facility follows a structured Quality Management System, reducing risks related to inconsistent production or undocumented process changes.
  • IPC-A-610 (Class 2 or 3)
    The gold standard for electronics assembly. Specifically, Class 2 is standard for consumer electronics, while Class 3 is reserved for high-reliability products where downtime is unacceptable.
  • IATF 16949
    While automotive-centric, a partner with this certification is a top-tier choice. It requires advanced product quality planning (APQP) and rigorous failure mode and effects analysis (FMEA).

Why Standards Matter for Long-term Scalability

IoT gateways are the central nervous system of a smart home; a single cold solder joint or faulty component can render an entire ecosystem offline. Manufacturing partners who adhere to these global standards maintain superior test coverage—such as Automated Optical Inspection (AOI) and In-Circuit Testing (ICT)—which minimizes 'infant mortality' rates of the hardware in the field. By prioritizing these certifications, you mitigate the risk of costly recalls and protect your brand's reputation for reliability.

Evaluating Supply Chain Transparency

Evaluating Supply Chain Transparency

Transparency in your PCBA manufacturing partner’s supply chain is not merely about ethics; it is a vital safeguard against production halts caused by component shortages and geopolitical instability. An ideal partner maintains real-time visibility into their tier-2 and tier-3 supplier networks, ensuring that every chip and capacitor is sourced from verifiable, compliant vendors.

Assessing Resilience to Component Shortages

IoT gateways often rely on specific microcontrollers and wireless modules that are prone to supply chain volatility. You must verify if your manufacturer uses a robust 'Design for Supply Chain' (DfSC) methodology.

Assessment MetricHigh-Reliability IndicatorRed Flag
Component SourcingDirect contracts with authorized distributorsReliance on unverified grey-market brokers
Inventory BufferingStrategic stocking of long-lead-time ICsJust-in-Time only with no safety stock
Alternative PartsPre-approved list of pin-compatible alternativesSingle-source dependency without design flexibility

Ethical Sourcing and Compliance

For IoT devices intended for home use, corporate social responsibility is essential. Ensure your partner adheres to conflict-free mineral sourcing and enforces environmental regulations like RoHS and REACH across their entire supplier base.

  • How do I verify a manufacturer's supplier transparency?
    Ask for their Conflict Minerals Reporting Template (CMRT) and request an audit trail showing their supplier verification process.
  • Why does DfSC matter for my IoT gateway?
    Design for Supply Chain allows the manufacturer to suggest components that are currently in stock, minimizing lead times and preventing design-cycle delays.
  • What is the role of digital traceability?
    Digital traceability systems (such as blockchain-based ledgers or advanced ERP integrations) track every component batch, ensuring you can identify exactly which parts went into which gateway device.

Scalability: From Prototype to Mass Production

An isometric representation of a modular automated manufacturing line expanding from a single unit to mass production.

Assessing Manufacturing Scalability

A partner capable of handling your prototype may fail under the pressure of ten thousand units. True scalability hinges on the manufacturer's ability to maintain consistent quality as throughput increases. You must investigate their production floor capacity, their shift flexibility, and their investment in high-speed surface mount technology (SMT) lines that reduce manual handling errors.

Automation vs. Manual Labor

Automation is the engine of consistent quality in IoT gateway manufacturing. Highly automated facilities utilize Automated Optical Inspection (AOI) and X-ray inspection systems to detect defects that are invisible to the human eye. While manual assembly might suffice for early-stage proof-of-concept units, moving to mass production requires a partner who minimizes human intervention to keep defect rates within acceptable parts-per-million (PPM) thresholds.

FeaturePrototype/Low VolumeMass Production
Inspection MethodsVisual/ManualAOI, 3D-AXI, and Flying Probe
Setup FocusFlexibility & SpeedRepeatability & Throughput
Procurement StrategySpot BuyingConsolidated Sourcing/Strategic Reserves

Frequently Asked Scaling Questions

  • How do I determine if a partner can handle my future volume?
    Ask for their current utilization rate and their ability to add additional shifts. A partner should be able to provide a roadmap for scaling, including how they reserve component capacity as your orders grow.
  • Does switching from a prototype partner to a mass-production partner cause issues?
    Yes, it creates 'transfer risk.' The best approach is to choose a partner that operates both rapid-prototyping services and full-scale production lines under the same quality management umbrella, ensuring a smooth transition of engineering data.
  • What role does DFM (Design for Manufacturing) play in scaling?
    Early-stage DFM feedback is critical. It identifies design choices that increase production costs or assembly complexity, allowing you to optimize the gateway for cost-effective manufacturing before reaching high-volume production.

Technical Capabilities and DFM Support

A conceptual design visualization showing the integration of engineering design with manufacturing workflows.

Leveraging Early-Stage DFM for Cost Optimization

Design for Manufacturing (DFM) is not merely a final review; it is an integrated engineering strategy that identifies potential production pitfalls before the first board is populated. For complex IoT gateways, early DFM involvement ensures that board layouts, component selection, and thermal management strategies are optimized for high-yield manufacturing rather than just functional prototyping. By catching issues like footprint errors or difficult-to-solder package designs early, you avoid costly re-spins and lengthy manufacturing delays.

Technical Evaluation Matrix

Technical CapabilityImpact on IoT Gateway QualityBenefit of Early Engagement
Advanced DFM AnalysisHigh solder joint reliabilityReduces field failure rates
Automated Optical InspectionPinpoints micro-defectsEnsures consistent yield at scale
Thermal Management ReviewPrevents chipset throttlingExtends product lifespan
PCB Stack-up OptimizationReduces signal interferenceImproves wireless connectivity

Essential DFM and Manufacturing Capabilities

  • Does the partner provide a comprehensive DFM report before production?
    A high-quality partner will analyze your Gerber files and BOM to flag potential assembly risks, such as tombstoning, shadowing, or insufficient thermal relief, providing actionable fixes.
  • How does the partner handle complex IoT RF circuitry?
    Smart home devices require precise RF layout and impedance control. Look for a partner with proven experience in multi-layer board fabrication and sensitive signal integrity testing.
  • Is the production facility equipped with advanced inspection tools?
    Standard visual inspection is insufficient for high-density IoT gateways. Ensure the partner utilizes AOI (Automated Optical Inspection) and X-ray inspection for hidden solder joints on BGA components.
  • Can the manufacturer assist with component substitution?
    In an unstable market, a partner that can perform rapid technical analysis on alternative components without compromising performance is invaluable for maintaining production continuity.

Testing and Quality Assurance Protocols

A visual representation of electronic boards undergoing various stages of rigorous automated inspection.

The Multi-Tiered Testing Strategy

For complex IoT gateway boards, a multi-tiered inspection strategy is essential to capture defects at every stage of the assembly process. A reputable PCBA partner must integrate automated inspection technologies with rigorous electrical validation to ensure high first-pass yields and long-term field stability.

Advanced Inspection Methodologies

MethodFunctionIoT Gateway Application
AOI (Automated Optical Inspection)High-speed camera-based visual checks.Detects missing components, polarity errors, and solder bridging.
AXI (Automated X-Ray Inspection)Non-destructive interior imaging.Inspects hidden BGA solder joints common in communication modules.
FCT (Functional Testing)Simulated environment power-up.Validates connectivity, RF signal strength, and firmware integration.

Essential QA Protocols for IoT Reliability

Beyond visual inspection, quality assurance for gateways requires specific focus on RF performance and boot integrity. Partners should provide detailed testing logs and failure analysis reports as part of their standard quality package.

  • Is Flying Probe testing sufficient for mass production?
    Flying Probe is excellent for low-volume prototypes or complex boards, but ICT (In-Circuit Testing) using custom bed-of-nails fixtures is generally preferred for high-volume gateway production due to faster cycle times.
  • How is firmware verification integrated into QA?
    A high-quality partner will integrate 'In-System Programming' (ISP) during the functional testing phase to load production firmware, immediately followed by a boot test to confirm hardware-software handshake.
  • What role does Burn-in testing play?
    For IoT gateways expected to run 24/7, high-temperature burn-in testing is crucial to identify 'infant mortality' failures in sensitive components like power management ICs or Wi-Fi chips.

Cultural Fit and Communication Standards

Aligning Cultural Values with Operational Excellence

Cultural fit extends beyond simple language proficiency; it encompasses a shared understanding of work ethics, problem-solving methodologies, and quality expectations. For an IoT gateway project—which demands high precision and rapid iteration—your manufacturing partner should demonstrate a proactive approach to addressing roadblocks rather than a passive 'follow-instructions-only' mindset. A partner whose organizational culture mirrors your own in terms of transparency and accountability will significantly reduce the risk of friction during critical project phases.

Communication Standards and Project Transparency

Effective communication in a cross-border environment hinges on the availability of a dedicated project manager and the use of standardized reporting tools. You should insist on clear escalation paths and regular, documented progress updates that include both technical milestones and potential supply chain risks.

Communication MetricPreferred StandardWarning Sign
Response LatencyUnder 24 hoursOver 48 hours
Reporting FormatAutomated real-time dashboardAd-hoc email updates
AccountabilitySingle Point of Contact (SPOC)Multiple uncoordinated departments

Assessing Partner Compatibility: Frequently Asked Questions

  • How do we bridge the language barrier?
    Ensure your partner has a dedicated English-speaking engineering team rather than relying solely on sales intermediaries. Technical documentation should be natively bilingual to avoid critical manufacturing errors.
  • Is physical site visitation necessary for cultural vetting?
    While not always required for initial prototypes, an on-site audit is the best way to observe the actual working culture, staff morale, and adherence to professional standards in the factory environment.
  • How should we handle disagreements regarding quality standards?
    Establish a clear 'Quality Agreement' document during the contract phase. This provides an objective reference point that supersedes cultural communication differences when technical disputes arise.

Cost Management Without Compromising Reliability

Beyond Unit Price: Understanding Total Cost of Ownership

Many organizations make the mistake of selecting a manufacturing partner based solely on the lowest quote. However, in the high-stakes world of smart home IoT gateways, the real cost is often hidden in secondary expenses such as high defect rates, logistics delays, and engineering rework. A truly ideal partner focuses on reducing the TCO through optimized material sourcing and streamlined production processes.

Cost FactorShort-term FocusLong-term TCO Focus
Component SourcingLowest available spot priceStrategic supply chain resiliency
Quality ControlManual samplingAutomated AOI and X-ray
Design FlawsFixed by reworkPrevented via early DFM

Strategies for Balancing Quality and Budget

  • Does early DFM involvement actually save money?
    Yes. By identifying assembly bottlenecks or component availability issues before production starts, you avoid costly emergency board redesigns and manufacturing stoppages later.
  • How does component procurement affect reliability?
    Using authorized distributors or managed supply chains prevents the inclusion of counterfeit or sub-standard components that often fail during the harsh operational life of an IoT gateway.
  • Is testing a cost or an investment?
    Comprehensive testing protocols represent an investment. Detecting a fault at the PCBA stage costs pennies, while recalling finished smart home devices due to field failures can be catastrophic to your brand and bottom line.

To maintain high standards without ballooning your budget, partner with a manufacturer that offers tiered testing programs. By focusing rigorous validation on critical high-failure-risk nodes and using standard compliance checks for mature components, you maximize quality while keeping overhead sustainable.

Selecting a PCBA partner is a high-stakes decision that dictates the success of your IoT product line. By focusing on stringent quality standards, robust supply chain transparency, and seamless scalability, you can mitigate risk and accelerate time-to-market. Are you ready to optimize your manufacturing strategy? Contact our hardware engineering team today to discuss your next project.
